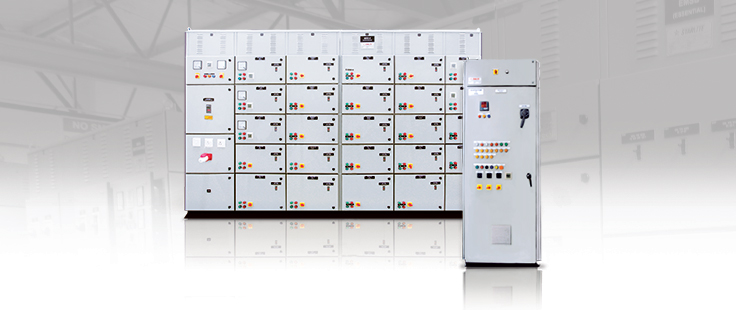

MOTOR CONTROL CENTRE

ELECTRICAL CHARACTERISTIC
Rated Voltage
• Rated Operational Voltage (V AC) Up to 600V
• Degree of Pollution 3
• Frequency (Hz) 50 / 60Hz
Rated Current
Main Busbar :
• Rated Current (Amp)

Up to 6000A
• Rated Short Time Withstand Current (kA) Up to 65kA
Distribution Busbar :
• Rated Current (Amp)
Up to 400A
• Rated Short Time Withstand Current (kA) Up to 65kA
MECHANICAL CHARECTERISTIC
Form Segregation According to IEC 439-2 2B / 3B / 4B
Degree of Protection According to IEC 529 External IP54 / 41
Internal 2X
Surface Protection Anti Rust Treatment /
Epoxy Power Coating /
Oven Baked
Standard Colors RAL 7032
Other colors upon request
Access Front and Rear
Cable Entry Top and Bottom
Ventilation Mechanical Air Louvers
MATERIAL
Frame Structure Material EG Sheet
Material Thickness :
• Frame Structure Material

2.5mm / 2.3mm
• Front Cover 2.5mm / 2.0mm
• Side / Rear Cover 2.0mm
• Internal Separation 1.5mm
• Base Robust C - Channel
• Protection Barrier Polycarbonate Sheet 2.0mm
