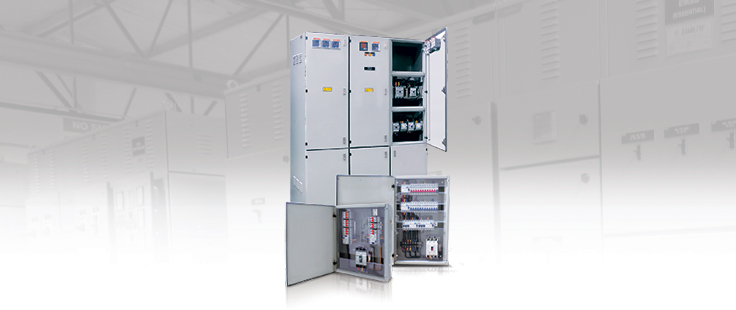

SUB SWITCHBOARD & DISTRIBUTION BOARD |
|
 |
|
|
| |
 |
| ELECTRICAL CHARACTERISTIC |
SSB |
DB |
| • Rated Operational Voltage (V AC) |
Up to 600V |
| • Degree of Pollution |
3 |
| • Frequency (Hz) |
50 |
| Rated Current |
|
Main Busbar :
• Rated Current (Amp) |
Up to 1000A |
Up to 100A |
| • Rated Short Time Withstand Current (kA) |
Up to 36kA |
Up to 16kA |
Distribution Busbar :
• Rated Current (Amp) |
Up to 400A |
Up to 60A |
| • Rated Short Time Withstand Current (kA) |
36kA |
6kA |
| MECHANICAL CHARACTERISTIC |
|
|
| Form Segregation According to IEC 439-2 |
2B / 3B |
2B / 1 |
| Degree of Protection According to IEC 529 |
IP54 / 41 External
2X Internal |
| Surface Protection |
Anti Rust Treatment /
Epoxy Power Coating /
Oven Baked |
| Standard Colours |
RAL 7032
Other Colors Upon Request |
| Access |
Front |
| Cable Entry |
Top and Bottom |
| Ventilation |
Mechanical Air Louvers |
| Enclosure Material |
EG Sheet |
| Material Thickness |
2.0mm / 1.5mm |
1.5mm / 1.2mm |
|
|
|
|
|
|
